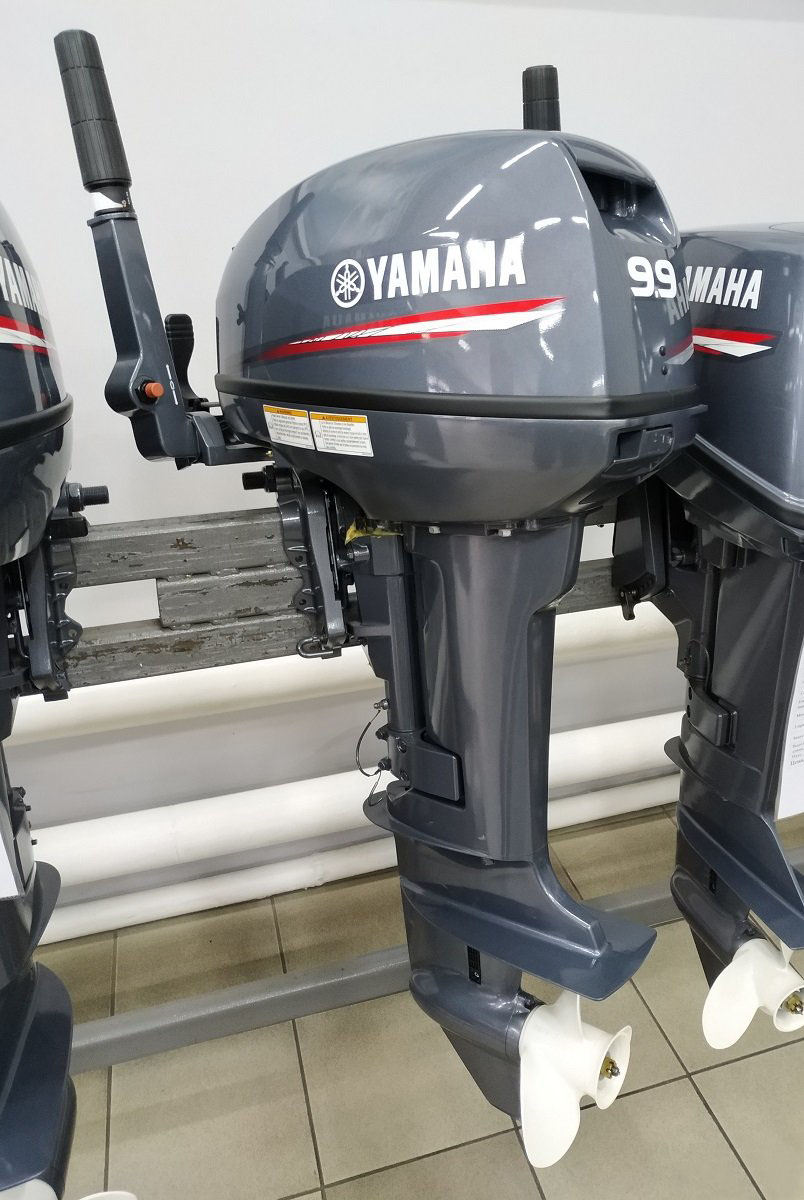

Yamaha 9.9 hp 2 Stroke Outboard Engine
Description
Yamaha 9.9 hp 2 Stroke Outboard Engine Short Shaft
| Starter | manual |
| Control system | tiller |
| Engine specifications | 2-cylinder. 2-beat |
| Displacement (cc) | 246 |
| Compression ratio | 6.8 |
| Power (hp) | 9.9 |
| Bore x stroke (mm) | 56 x 50 |
| Range max engine speed | 4500-5500 rpm |
| Ignition system | Cdi |
| Purge | simultaneous charging |
| Supply system | 1 carb |
| Fuel tank (l) | 24 |
| Max. fuel consumption (l / h) | 5.1 |
| Lubrication system | premixing |
| The proportion of the fuel-oil mixture | 50: 1 |
| Alternator | 6A, 80 W |
| Gear shift mechanism | Fnr |
| Gear ratio | 2.08 (27/13) |
| Exhaust system | through the propeller hub (JET system (Reactive) |
| Propeller gearing | splined connection |
| Transom engine height | S 442 mm (17.4 in.) |
| Dry weight with propeller | 36.0 kg |
| Trim and tilt | tame |
| Cable lanyard to stop the engine | there is |
| Motor deviation when driving in shallow water | there is |
| Rectifier Regulator | rectifier with regulator |
| Starter lock on reverse | there is |
